Description

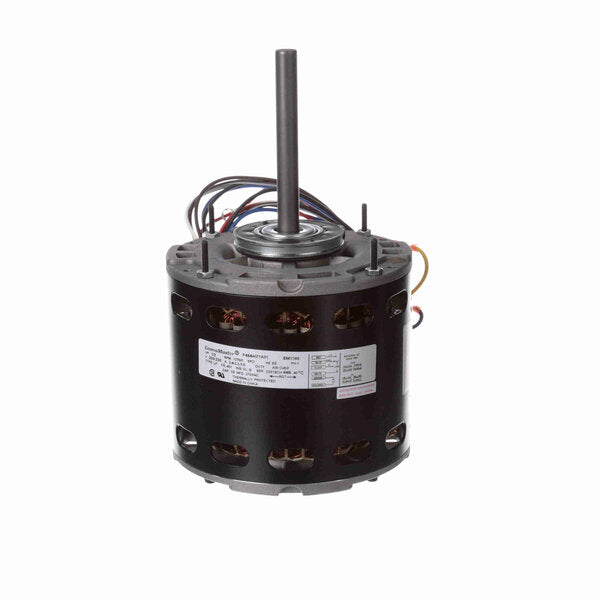

- EconoMaster – Condenser Fan Motor
- 5.6″ Diameter – 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2″ Diameter Shaft with Double Flat
- 36″ Leads
- Extended Studs Lead End, Mounting Holes in Shell, Belly Band
| Nameplate Specifications | |
| UPC | 786674068897 |
| Output HP | 1/6 Hp |
| Frequency | 60 Hz |
| Current | 1.0-1.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 825 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
