Description

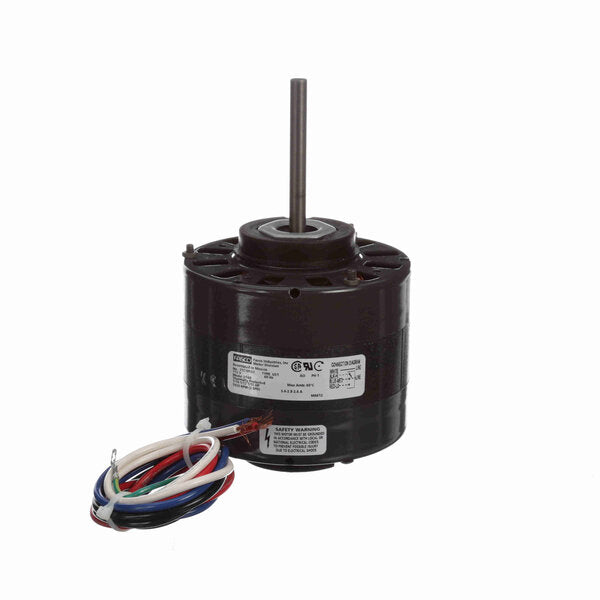

- EconoMaster – Direct Drive Fan & Blower Motor
- 5.6″ Diameter – 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2″ Diameter Shaft with Flat
- 25″ Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
| Nameplate Specifications | |
| UPC | 786674019479 |
| Output HP | 1/4 Hp |
| Frequency | 60 Hz |
| Current | 1.9- 1.1- 0.9 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
