Description
PRODUCT INFO
ApplicationsDesigned for use in fan coil air conditioner/heating units in hotels, motels, offices and hospitals where a central system pumps hot or cold water or refrigerants to remote console type room units
FeaturesThermally protected. Shaft: flatted and same length both ends, height is 3-1/2″. Resilient rings: 2-1/2″ diameter supplied, except HM105-0041. Capacitor Included

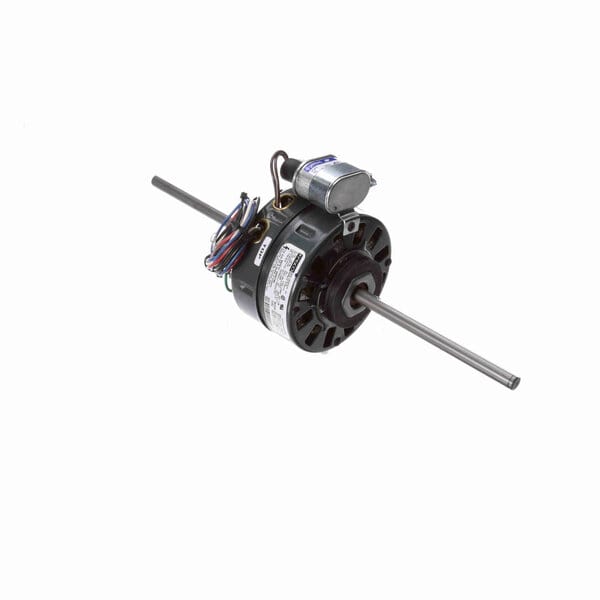

- Fan Coil – Air-Conditioning – Heating Unit Motor
- 5″ Diameter – 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2″ Diameter Double Shaft with Flat
- 30″ Leads with .5″ Strip
- Extended Studs Opposite Lead End, Hex Mounting Hubs Lead End and Opposite Lead End
| Nameplate Specifications | |
| UPC | 815585029687 |
| Output HP | 1/8-1/10-1/15-1/20 Hp |
| Frequency | 60 Hz |
| Current | 2.3/1.6/1.2/0.7 A |
| Service Factor | 1 |
| Duty | Continuous Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
