Description
Product Features

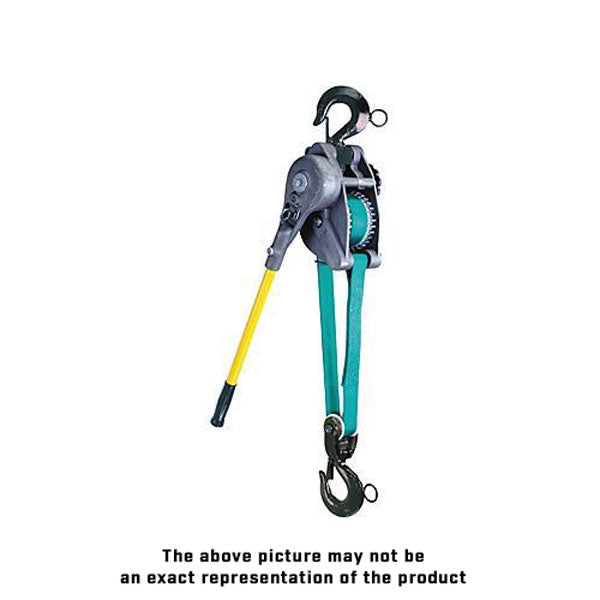

- Lightweight and rugged strap hoist puller
- Includes hot stick-type gate latch on all hooks as well as hot stick rings on all hooks and control surfaces
- Overload protection handle tip bends to warn of hazardous overload
- Handle tip replacement is easy and simple
- Enhanced reversing mechanism innovative design reduces the handle effort needed to release or lower a load
- Double interlocking PAWLS assures positive load holding in all environments
- Compact aluminum alloy frame features a double flanged strap drum and interrogated hook point for double line use
- All stainless steel springs and shafts are corrosion resistant
- All rotating shafts are mounted on bronze bushings for reduced wear
- 360° swiveling hooks can be equipped with a wide range of latch options
- Meets or exceeds minimum 4:1 design factor and all requirements of ASME/ANSI Standard B-30.21
- All units tested at 125% of rated load
Product Specifications
- Single Line Capacity: 1500 and 2000 lbs
- Double Line Capacity: 3000 and 4000 lbs
- Lift: 14’ and 7’
- Hoist Model: 322
- Type: Strap
- Headroom: 22”
- Load Limiter Included: No
- Anchor Sling Installed: No
- Product Weight: 11.5 lbs
- Load Sentry Included: No
- Metric Rated: No
- Reeving: 1 & 2
- Shipyard Hooks: No
- Lever Length: 24”
